Mitsubishi Twinkle Fiber Optic Cable
Mitsubishi twinkle fiber optic cable is the side spot fiber optic light cables. And composed by the diameter of 0.75mm or 1.0mm optical fibers. It is divided into sheathed and unsheathed one.
The Mitsubishi CK fibers inside the clear PVC sheath are 0.75mm or 1.0mm in form of single strand and multi strands. And used to make sensory lights, curtain lights and chandeliers.
1. Core Material: Polymethyl-Methacrylate Resin (Acrylic/PMMA)
2. Cladding Material:
2.1. N/A
2.2. Fluorinated Polymers
3. Outer Diameter: 0.75mm~4.0m
4. Dot Distance: 3cm or 4cm
5. Spool Length: 3000m-900m
6. Bend Radius: Minimum 10 x fiber diameter
7. Core Refractive Index: 1.49
8. Refractive Index Profile: Step index
9. Light Attenuation: ≤0.2dB/M
10. Operating Temperature Range: -55°C – 70°C
- Description
- Technical Parameter
- Reviews (0)
Description
High Power Light Source Recommended
As the light emits from the points along the Mitsubishi twinkle fiber optic cable, usually the twinkle fiber optic cable requires high power fiber optic light source to drive. Such as our 80W one, LEI-8001, and 150W one, LEI-15001. And the ideal continuous length is around 7-8 meters or less. If a much longer twinkle fiber optic cable is needed, please check the sales for a solution.

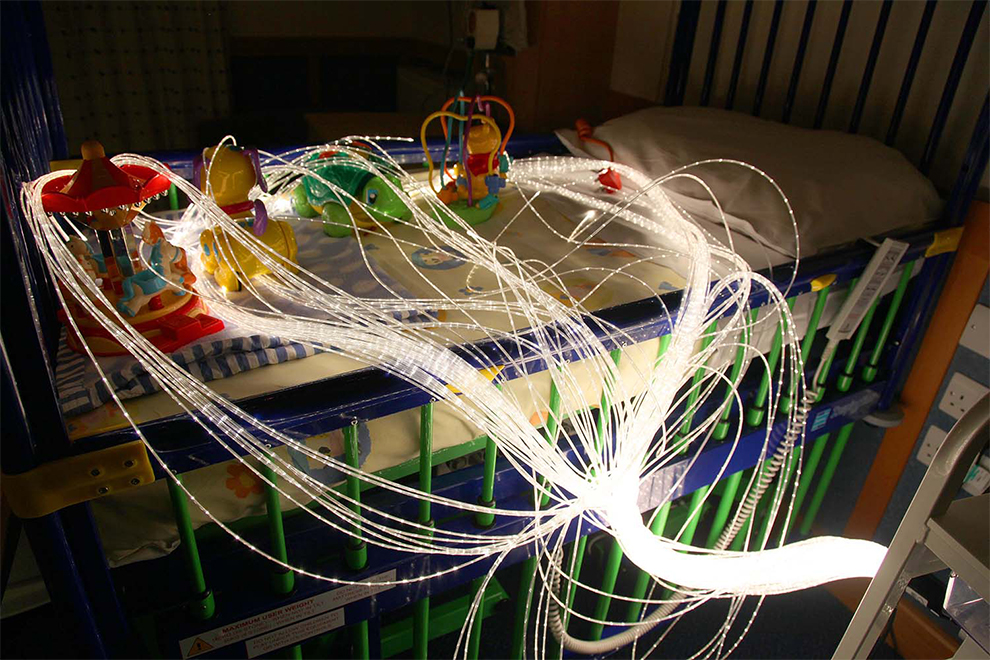

Sensory Fiber Optic Cable
The sensory light provides a calming environment when the kit slowly changes colors. It could be used for relaxation or de-escalation for individuals with Dementia or Children who are becoming overwhelmed in their daily environment.
The sensory fiber optic could come in different forms, the fiber optic chandelier, the fiber optic curtain, or even the sensory fiber optic bundles which all help greatly in creating the sensory environments.
Straightened Fiber Cable

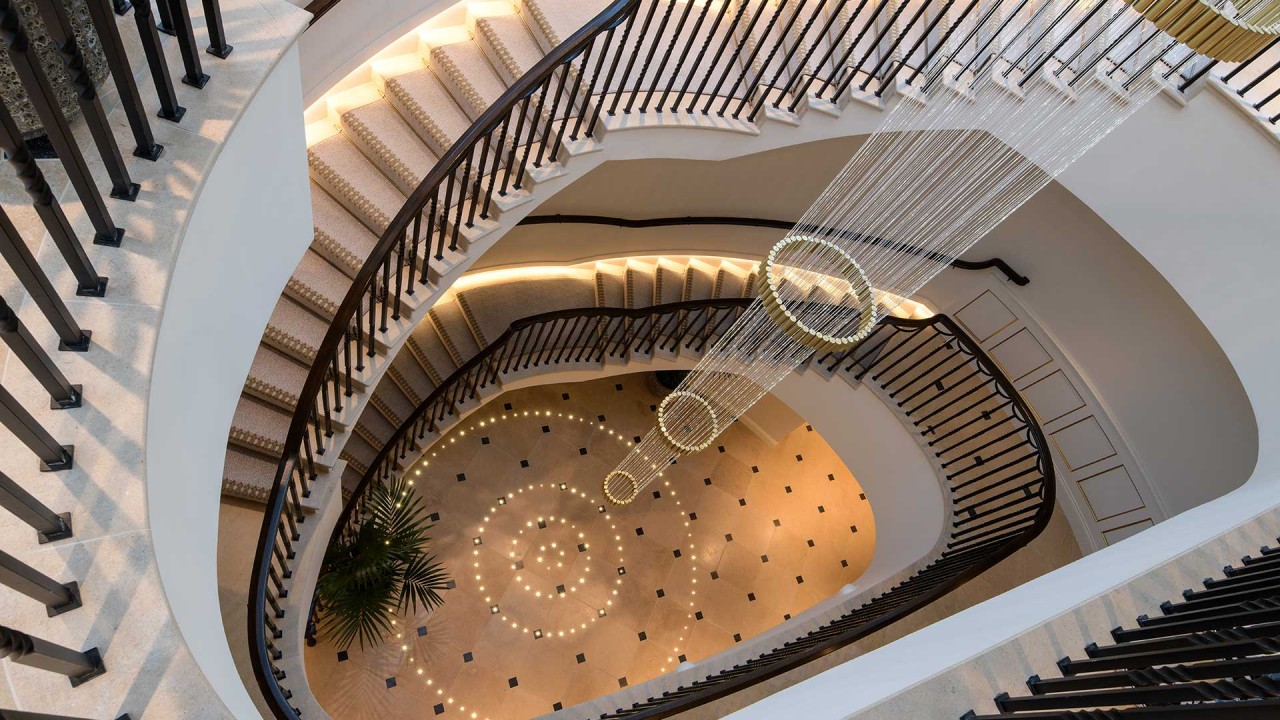

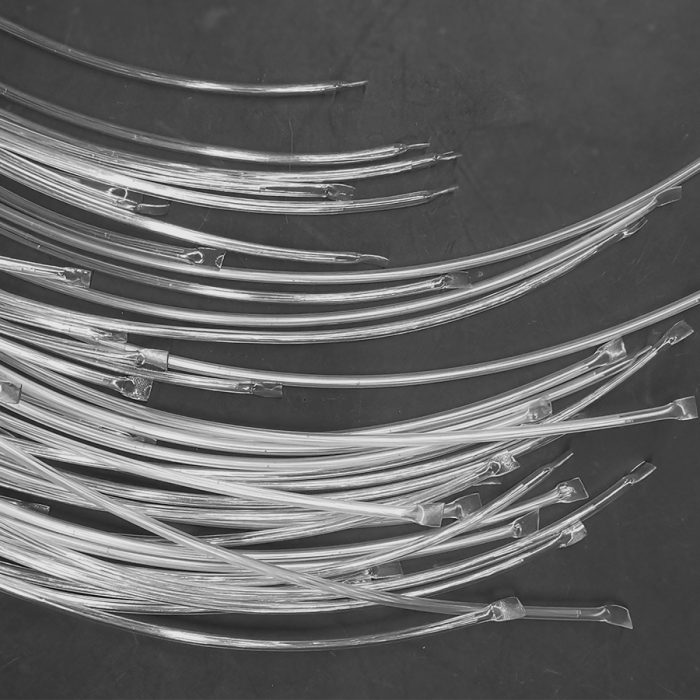

When making the chandelier or curtain lights with Mitsubishi twinkle fiber optic cables, a straight fiber cable is often needed. In the case of the sheathed fiber cable, the crystal end fittings are attached to the end of the fiber optics to have the straightening effect. For the non-sheathed twinkle fiber cable, special processing technology will be applied to have the straightening effect. Please check with the sales for suggestion.
Specifications:
| Product Category | Ordering Code | Core Diameter (mm) | Outer Diameter (mm) | Dot Distance (mm) | PVC Sheath | Spool Length (m) | Attenuation (dB/M) | Minimum Bend Radius(mm) |
| Mitsubishi Twinkle Fiber Optic Cable | SSOF-1*0.75/CK | 0.75 | 0.75 | 30 | N/A | 2700 | ≤0.2 | 5 |
| SSOF-1*1.0/CK | 1.0 | 1.0 | 30 | N/A | 1500 | ≤0.2 | 10 | |
| PSSOF-1*0.75/CK | 1*0.75 | 1.4 | 30 | Clear | 5400 | ≤0.2 | 15 | |
| PSSOF-1*1.0/CK | 1*1.0 | 1.8 | 30 | Clear | 3000 | ≤0.2 | 18 | |
| PSSOF-3*0.75/CK | 3*0.75 | 3.0 | 30 | Clear | 1350 | ≤0.2 | 30 | |
| PSSOF-3*1.0/CK | 3*1.0 | 3.5 | 30 | Clear | 750 | ≤0.2 | 35 | |
| PSSOF-7*0.75/CK | 7*0.75 | 4.0 | 30 | Clear | 900 | ≤0.2 | 40 |
