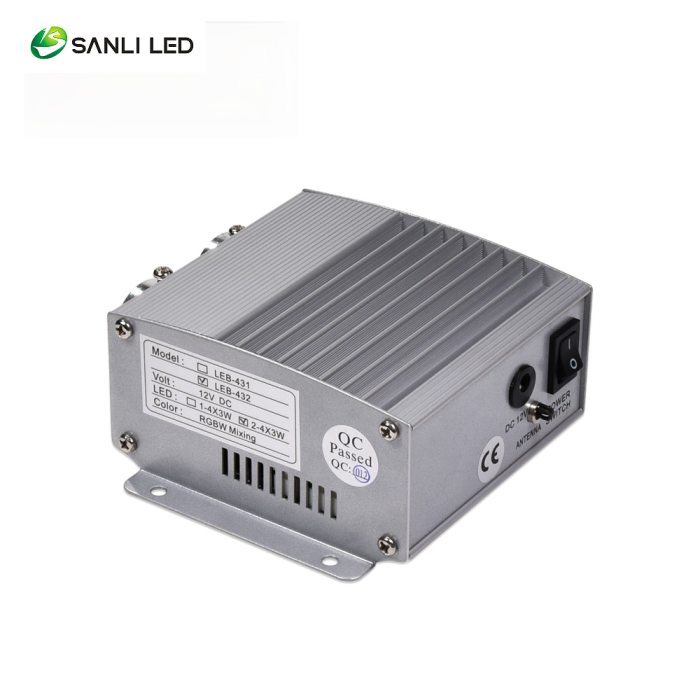

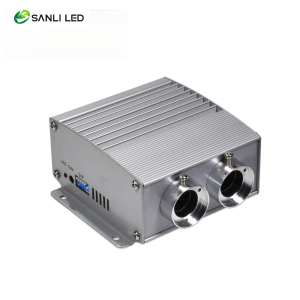

Dual Head 4x3W RGBW LED Light Source | LEB-432
The LEB-432 is a kind of high quality RGBW color changing LED light source that without any motors or fans. The most advantages of LEB-432 is noise free and quiet. It is the best choice for the home bedroom, home cinema and other places that need to be kept quiet.
1. Model: LEB-432
2. Input Voltage: DC 12V
3. Light Source: Colorful LED
4. LED Type: RGBW, 2 Pieces 4*3W, Cree,
5. Dual ports: Work in a synchronous way
6. Twinkle Disc: N/A
7. Control: Remote control/DIP switches
8. Light Emitting: Static color/Cycling colors
9. Dimmable
10. No fans or motor, noise free
11. Warranty: 2 Years
- Description
- Technical Parameter
- Package Including
- Reviews (0)
Description
Dual Ports
Same with other dual-port LED light sources, such as LEB-432DMX, LEF-432DMX, and LEF-502DMX, the dual ports of LEB-432 always display the same color and brightness in operation.
Each port could have an aperture of 14mm or 18mm. By 18mm, a single port connector can accommodate 450pcs of 0.75mm or 250pcs of 1.0mm fiber optic cables. In total one unit of LEB-432 could hold up to 900pcs of 0.75mm fiber optic light cables.

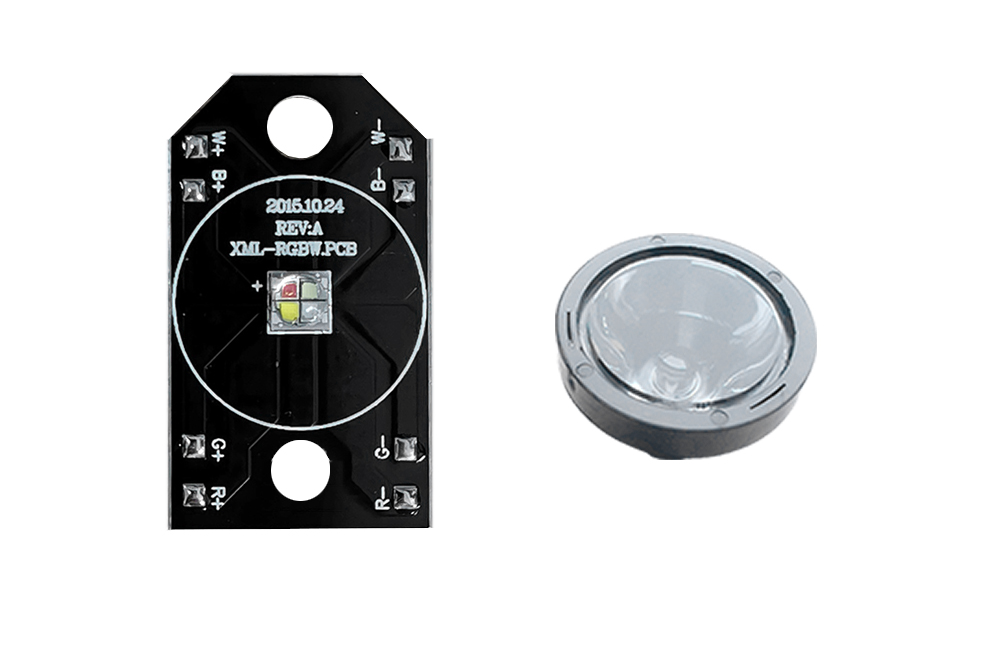

RGBW + Lens
1. There is not any motor and fan for LEB-432 LED light source, so it does not produce any noise when working.
2. The four-colour LED module brings the starry ceiling a fantastic simulating effect.
Remote Control & DIP Switches
There are total 26 built-in programmes for LEB-432 dual head RGBW color changing fiber optic light source, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).
The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
1、Switching the machine on and off.
2、Selecting the built-in programs.
3、Dimming.
Battery: 23A 12V, 1pc (not included in the package).
Specification:
| Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Optional Remote Control |
| LEB-432 | 14mm | 18mm | 450pcs*2 | Aluminum | Silver | L125XW125XH60 | RC-04 |
Electrical Parameters:
| Working Voltage | Power Consumption | Input Voltage | Adapter Power |
| 12V | 14W | 100V-240V ac | 12V/2A |
LED Chip Parameters:
| LED Power | LED Color | Color Temperature | Colour Temperature Options | Luminous Flux | Life Span |
| 2Pcs 4x3W | RGBW | W: 6000K | W: 3000K | N/A | 50000h |
Control Methods:
| 1 | DIP Switches |
| 2 | Remote Control (optional) |
Standard Parts in the Package:
| No. | Item | Quantity |
| 1 | 14mm Port Connector | 2 |
| 2 | AC-DC Adapter | 1 |
Optional Parts:
| No. | Item |
| 1 | 4-Key RF Remote Contro |
| 2 | 18mm Port Connector |

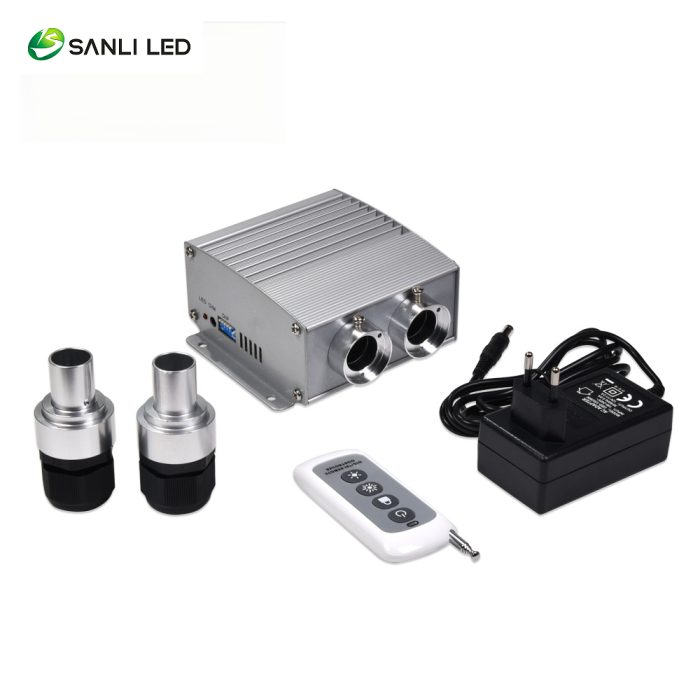

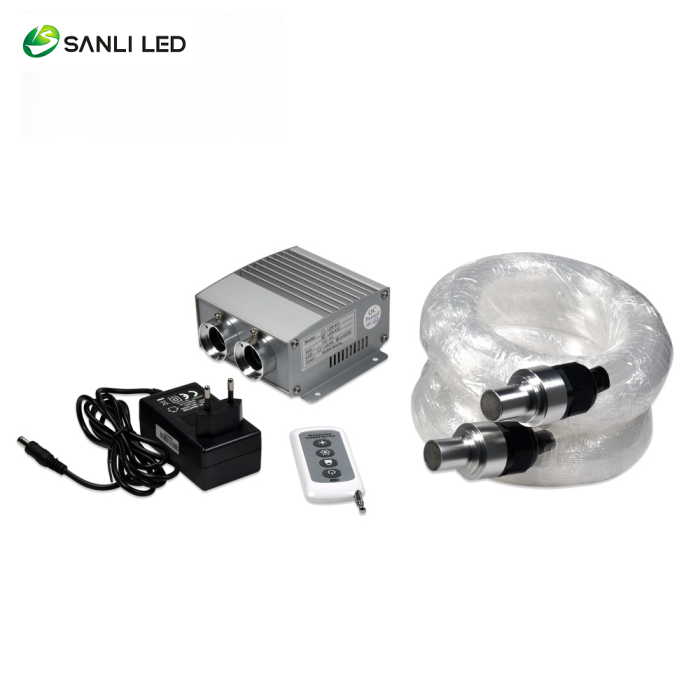

1 x Dual head 4*3W RGBW LED light source
1 x 4-Key RF remote control (optional)
2 x 14mm port connector
2 x 18mm port connector (optional)
1 x AC-DC adapter
1 x User manual
1 x Fuse
Reviews
There are no reviews yet.
