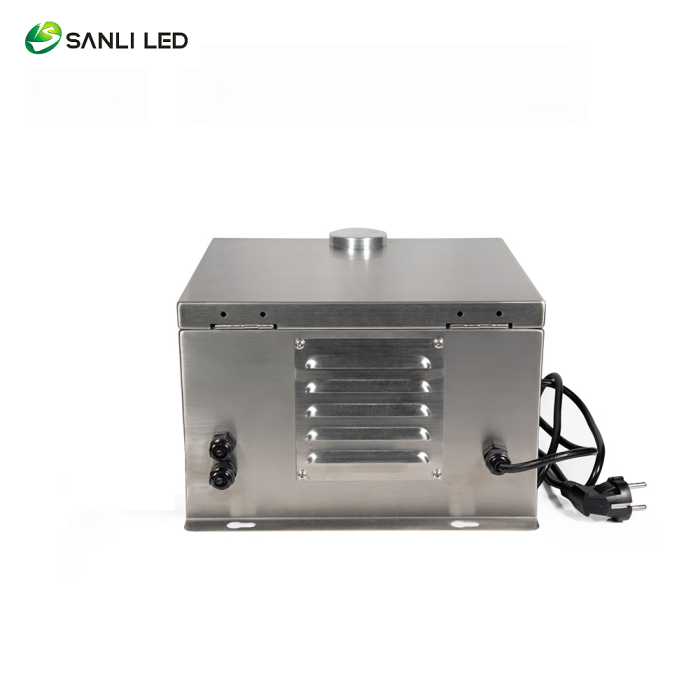

80W LED Fiber Optic Pool Light Box | LEI-8001/WP
The LEI-8001/WP is the top quality waterproof LED fiber optic light box that apply stainless steel SS-304 as its housing material with the IP rating of IP43. It is best choice for the wet area lighting, such as swimming pool, SPA, sauna, park and so on.
1. Model No: LEI-8001/WP
2. Input Voltage: AC 100-240V
3. Light Source: White LED
4. LED Type: 55W, Cree, 3000K/4000K/6000K
5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel
6. Control: Wireless remote control/DIP switches
7. Light Emitting: Static color/Cycling colors
8. Twinkle Effect: Optional
9. Adjustable wheel spin speed
10. Dimmable
11. Warranty: 2 Years
- Description
- Technical Parameter
- Package Including
- Reviews (0)
Description

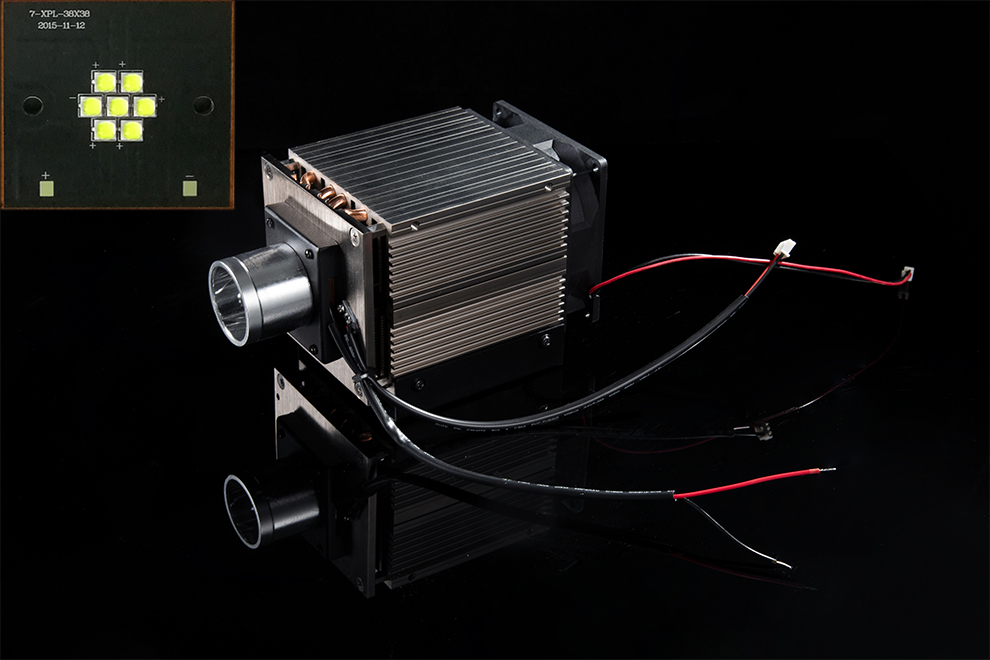

Heat Sink and Temperature Detector
LEI-8001/WP LED fiber optic pool light box has adopted the specially designed heat sink with fans to achieve the superior heat dissipation result.
Temperature Detector has also been applied to protect the pool fiber optic illuminator from overheating.
Color Wheel and Twinkle Wheel
The wheels/discs that could be equipped into LEI-8001/WP, from left to right and top to bottom:
1. The 6-color wheel
2. The twinkle wheel
3. The colorful twinkle wheel
The default wheel is the 6-color disc. Other wheels/discs are available at request, and the customized requirement is also welcome.

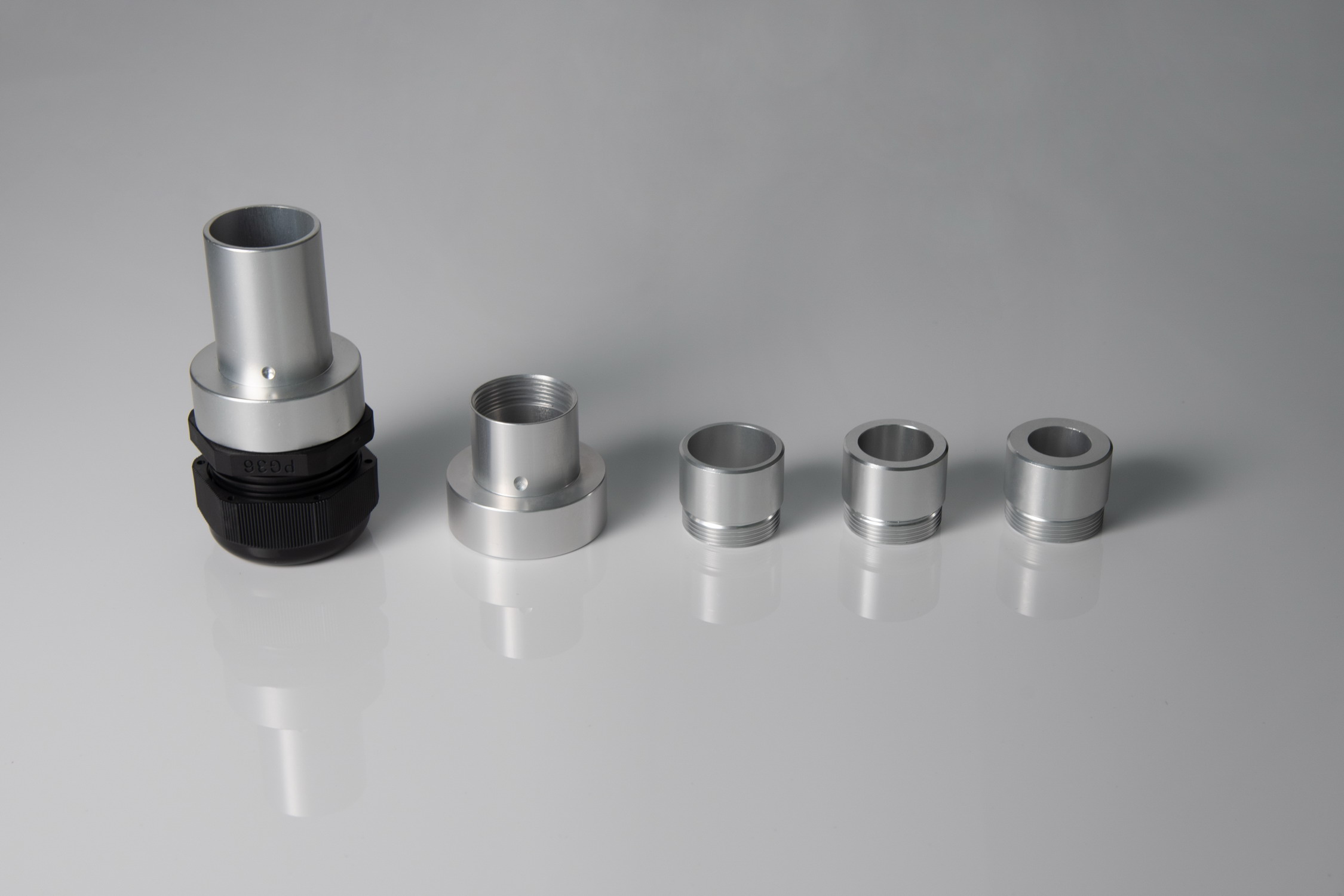

3-in-1 Fiber Optic Illuminator Port Connector
By default Sanli LED provides one piece of 20mm/24mm/28mm 3-in-1 combined fiber optic illuminator port connector for the 80W LED fiber optic pool light source. These apertures are capable of 540pcs, 770pcs, and 1050pcs of 0.75mm fiber optic tails respectively. 30mm port connector is also available at request.
From left to the right, the port connector: 30mm, 28mm, 24mm, and 20mm.
Customized apertures are also welcome!
Remote Control & DIP Switches
LEI-8001/WP has 8 built-in programmes, which can be selected by the DIP switches that are inside the stainless steel housing.
The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
1. Turn on the light engine
2. Turn off the light engine
3. Fix the emitting color
4. Dimming
Battery: 23A 12V, 1pc (not included in the package).
Specification:
| Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Gross Weight (kgs) | Optional Remote Control |
| LEI-8001/WP | 20/24/28mm | 30mm | 1250pcs | Stainless Steel | Silver | L347XW287XH195 | 8.0 | RC-04 |
Electrical Parameters:
| Input Voltage | Power Consumption |
| 100V-240V ac | 80W |
LED Chip Parameters:
| LED Power | LED Color | Color Temperature | Colour Temperature Options | Luminous Flux | Life Span |
| 55W | White | 6000K | 3000K/4000K | 6100lm @ 6000K | 50000h |
Control Methods:
| 1 | DIP Switches |
| 2 | Remote Control (optional) |
Standard Parts in the Package
| No. | Item | Quantity |
| 1 | 6-color Wheel (built-in) | 1 |
| 2 | 20/24/28mm 3-in-1 Port Connector | 1 |
| 3 | Fuse | 1 |
| 4 | Housing Cover Keys | 2 |
Optional Parts:
| No. | Item |
| 1 | 4-Key RF Remote Control |
| 2 | Twinkle Wheel |
| 3 | Colorful Twinkle Wheel |
| 4 | 30mm Fiber Connector |
1 x 80W fiber optic pool light box
1 x Remote control (optional)
1 x 20/24/28mm 3-in-1 or 1 x 30mm port connector
1 x User manual
1 x Fuse
