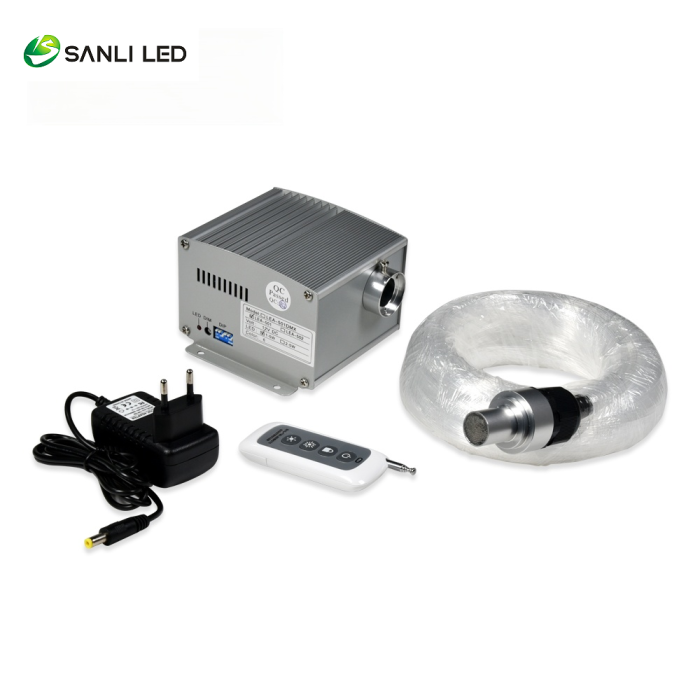

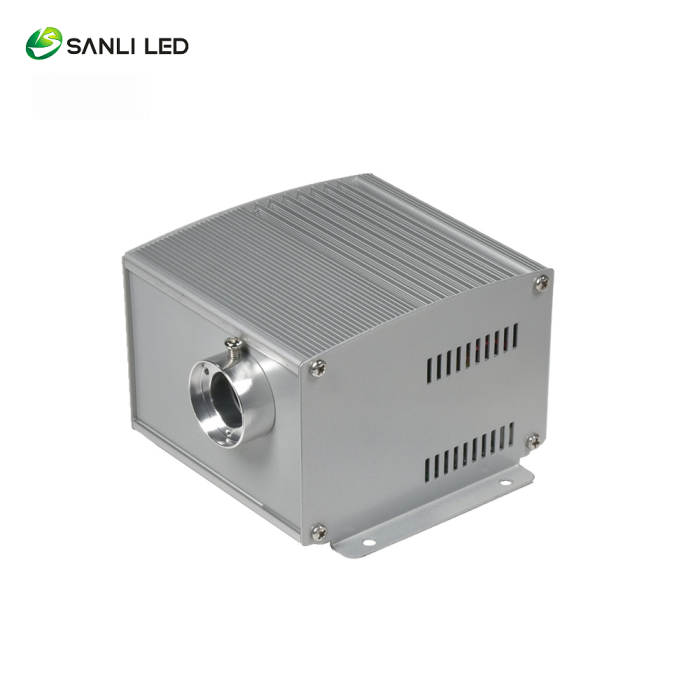

5W White LED Fiber Optic Light Source | LEA-501
The LEA-501 is a kind of high quality standard LED fiber optic light source which used the 5 White LED chip as lamp. The 6-colour wheel is built inside the LEA-501 by default. It is the most popular used model for the fiber optic star ceiling lights.
1. Model No: LEA-501
2. Input Voltage: DC 12V
3. Light Source: White LED
4. LED Type: 5W, Cree, 3000K/4000K/6000K
5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel
6. Control: Wireless remote control/DIP switches
7. Light Emitting: Static color/Cycling colors
8. Adjustable wheel spin speed
9. Dimmable
10. No fans, noise free
11. Warranty: 2 Years
- Description
- Technical Parameter
- Package Including
- Reviews (0)
Description
Color Wheels & Twinkle Wheel
The colour wheels/discs that could be equipped into 5W LED fiber optic light source LEA-501, from left to right and top to bottom:
1. 6-color wheel
2. Fast-effect twinkle wheel
3. Slow-effect twinkle wheel
4. Fast-effect colorful twinkle wheel
5. Slow-effect colorful twinkle wheel
By default, the 6-color wheel has been built inside the fiber optic light source. Other wheels/discs are available at request, and customized requirement is also welcome.
Fiber Optic Illuminator Port Connector
By default Sanli LED provides one piece of 14mm port connector for most of the low-voltage LED light sources. The port connector of this aperture is capable of 250pcs of 0.75mm fiber optics. At request, an 18mm port connector is also available which is capable of 450pcs of 0.75mmm fiber tails.

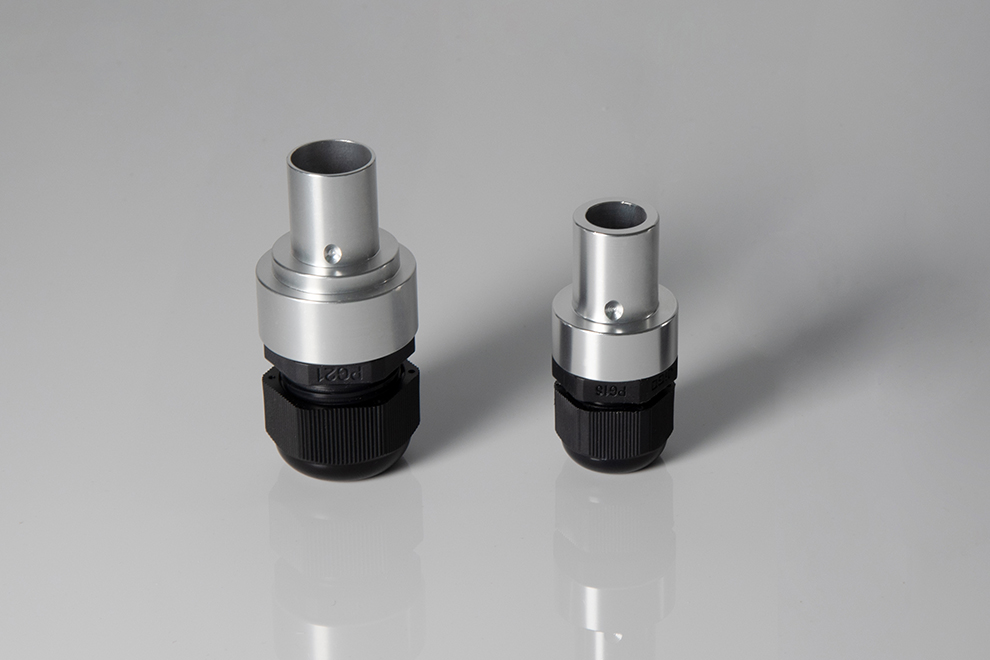

From left to the right, the port connector: 18mm, 14mm.
Fiber optic port connectors of customized apertures are also welcome!

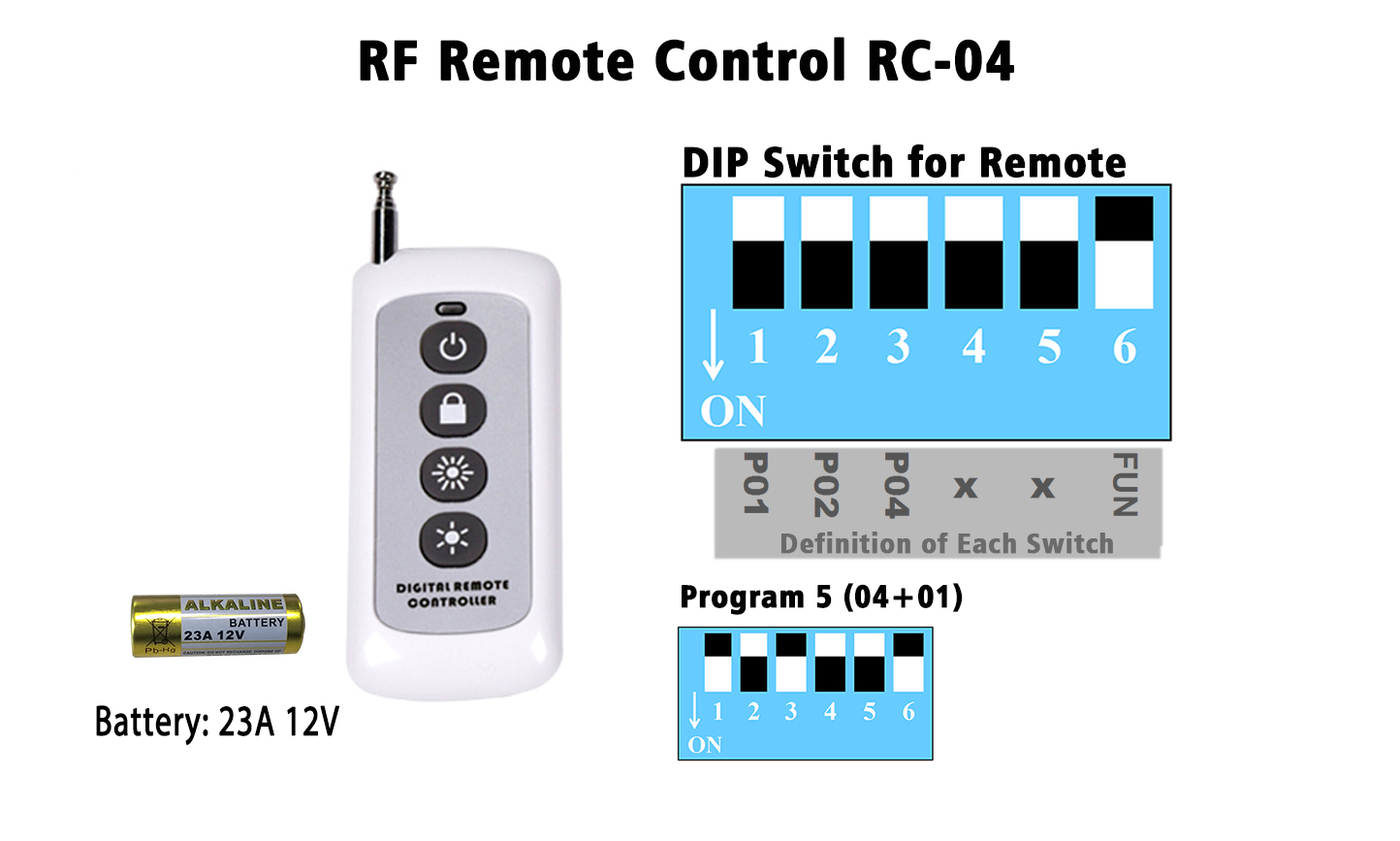

Remote Control & DIP Switches

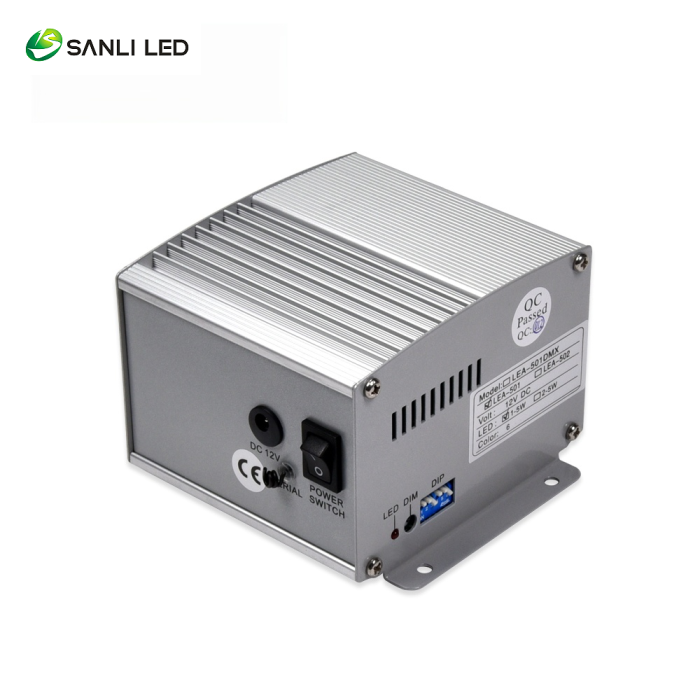

The fiber optic light source LEA-501 has 8 built-in programmes, which can be selected by the DIP switches.The 4-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 4-key remote control (SW6 ON):
1. Turn on the LED light source
2. Turn off the LED light source
3. Fix the color
4. Dimming
Battery: 23A 12V, 1pc (not included in the package).
Neutral Color Package Box
Sanli LED low voltage fiber optic light sources are generally packaged in neutral color boxes. One unit of the fiber optic illuminator is packed in a color box. 8 to 10 color boxes are packed in an export carton.
Specification:
| Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Optional Remote Control |
| LEA-501 | 14mm | 18mm | 450pcs | Aluminum | Silver | L125XW125XH80 | RC-04 |
Electrical Parameters:
| Working Voltage | Power Consumption | Input Voltage | Adapter Power |
| 12V | 7W | 100V-240V ac | 12V/1A |
LED Choip Parameters:
| LED Power | LED Color | Color Temperature | Colour Temperature Options | Luminous Flux | Life Span |
| 5W | White | 6000K | 3000K/4000K | 500lm @ 6000K | 50000h |
Control Methods:
| 1 | DIP Switches |
| 2 | Remote Control (optional) |
Standard Parts in the Package:
| Item | Quantity | |
| a 6-color Wheel (built-in) | 1 | |
| 14mm Fiber Connector | 1 | |
| AC-DC Adapter | 1 |
Optional Parts:
| No. | Item |
| 1 | 4-Key RF Remote Control |
| 2 | Fast-Effect Twinkle Wheel |
| 3 | Slow-Effect Twinkle Wheel |
| 4 | Colorful Fast-Effect Twinkle Wheel |
| 5 | Colorful Slow-Effect Twinkle Wheel |
| 6 | 18mm Fiber Connector |

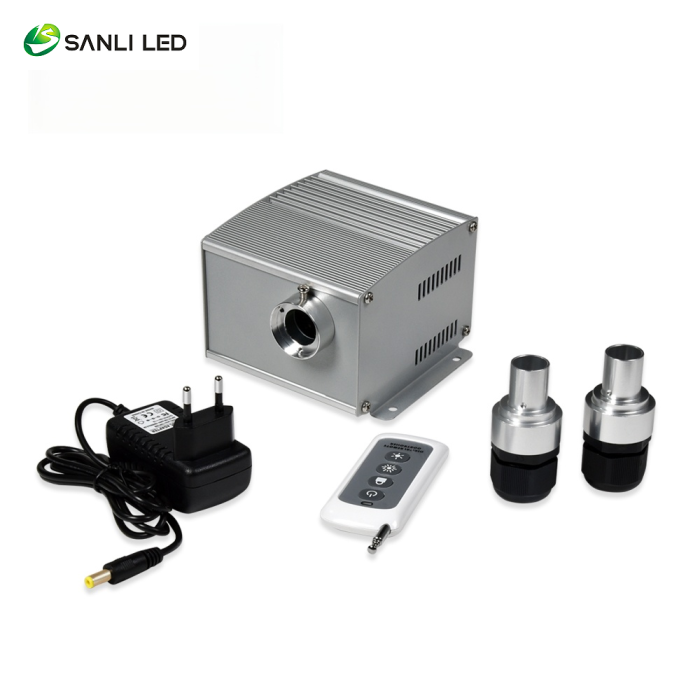

1 x 5W LED fiber optic light source
1 x 4-Key RF remote control (optional)
1 x 14mm port connector
1 x 18mm port connector (optional)
1 x AC-DC adapter
1 x User manual
1 x Fuse
