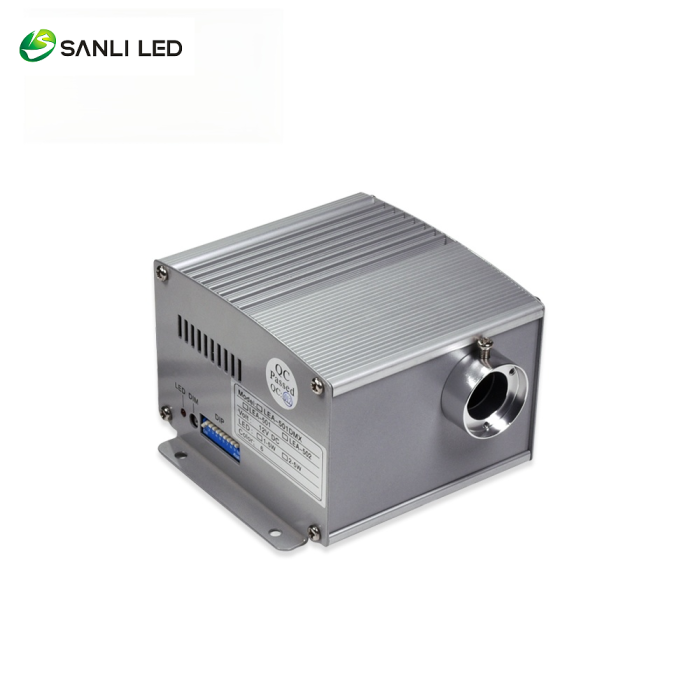

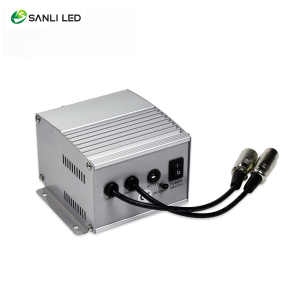

5W White DMX LED Fiber Optic Light Source | LEA-501DMX
The LEA-501DMX is a kind of top quality standard DMX LED fiber optic light source which used the 5 White LED chip as light source. The 6-colour wheel is built inside the LEA-501DMX by default. It is the most popular used model for the fiber optic star ceiling kits.
1. Model No: LEA-501DMX
2. Input Voltage: DC 12V
3. Light Source: White LED
4. LED Type: 5W, Cree, 3000K/4000K/6000K
5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel
6. Control: DMX512/Remote control/DIP switches
7. Light Emitting: Static color/Cycling colors
8. Adjustable wheel spin speed
9. Dimmable
10. No fans, noise free
11. DMX512 protocol: DMX512 console or master-slave control
12. Warranty: 2 Years
- Description
- Technical Parameter
- Package Including
- Reviews (0)
Description

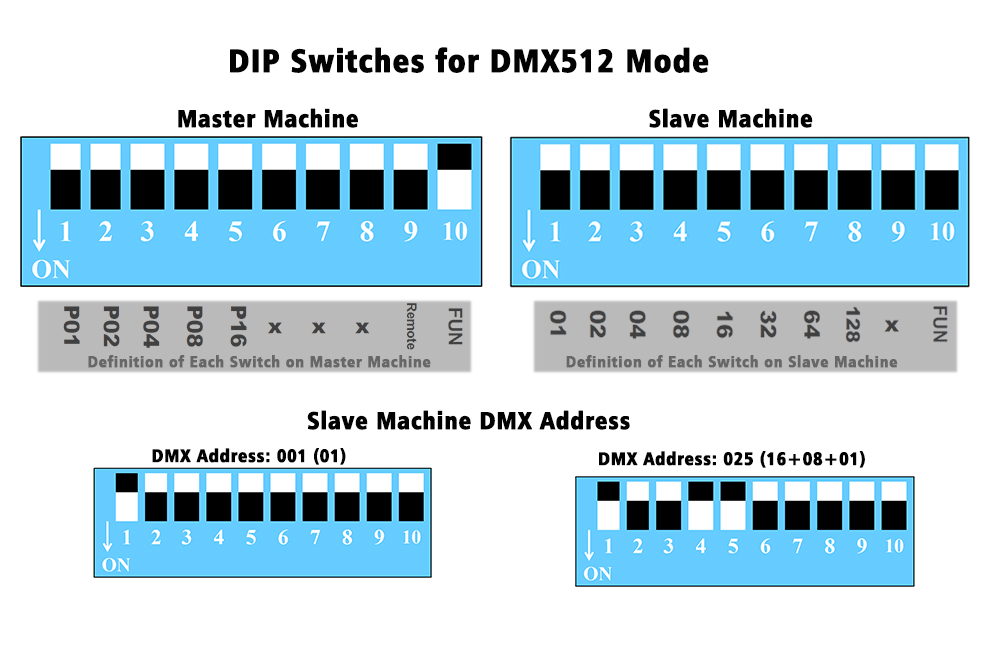

Master-Slave Control
Multiple units of the DMX512 fiber optic light sources can be connected as a group via DMX signal cables to run the master-slave control mode. In master-slave control mode, there will be one and only one master fiber optic illuminator, and all the rest will be set as slave illuminators. The master runs the built-in program with or without the remote control, and all slave illuminators will automatically follow to have a synchronous or progressive effect.

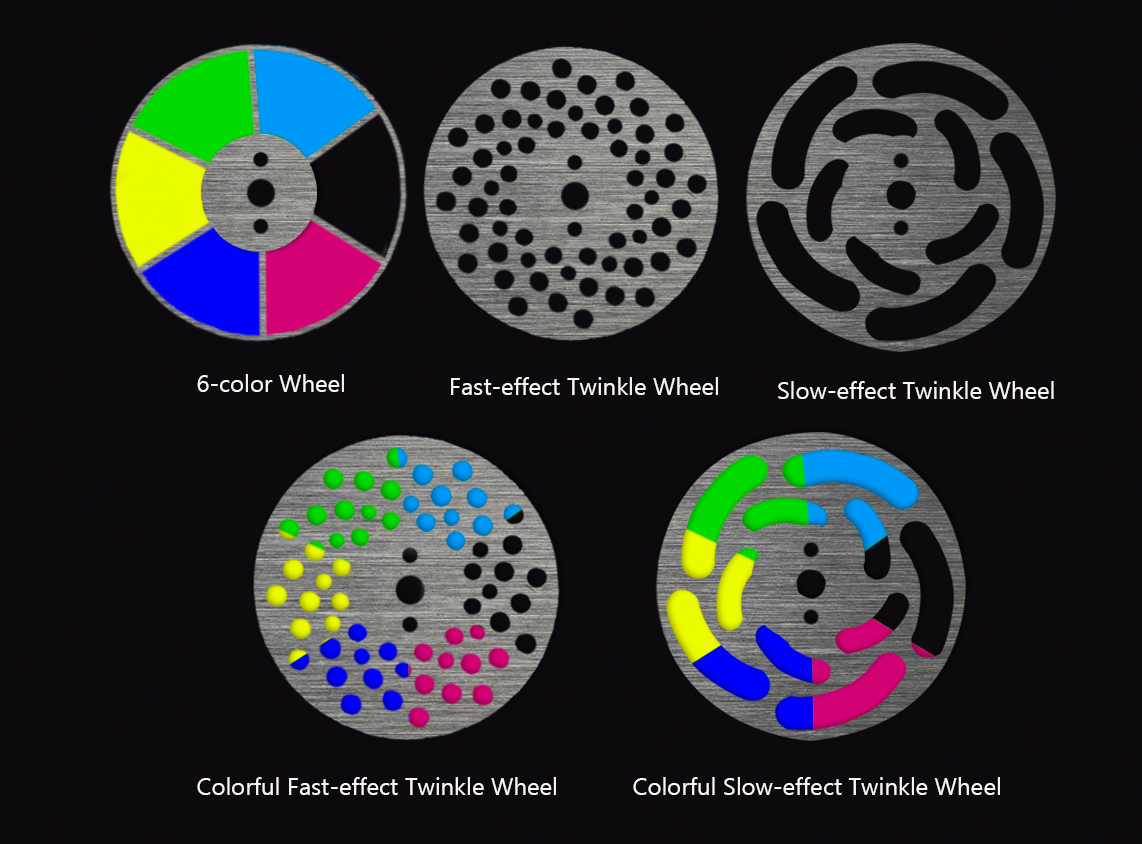

Colour Wheels & Twinkle Disc
The wheels/discs that could be equipped into the fiber optic light source LEA-501DMX, from left to right and top to bottom:
1. 6-color wheel
2. Fast-effect twinkle wheel
3. Slow-effect twinkle wheel
4. Fast-effect colorful twinkle wheel
5. Slow-effect colorful twinkle wheel
By default, the 6-color wheel has been assembled in the fiber optic light sources. Other wheels/discs are available at request, and customized requirement is also welcome.
Remote Control & DIP Switches
There are total 17 built-in programmes for LEA-501DMX, which can be selected by the DIP switches and the remote control (SW9 & SW10 ON).
The 12-key RF remote control has an effective control distance of around 25 metres in open area. The function of the 12-key remote control (optional):
1、Switching the machine on and off
2、Selecting the built-in programs
3、Dimming
Battery: 23A 12V, 1pc (not included in the package).
Specification:
| Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Optional Remote Control |
| LEA-501DMX | 14mm | 18mm | 450pcs | Aluminum | Silver | L125XW125XH80 | RC-12 |
Electrical Parameters:
| Working Voltage | Power Consumption | Input Voltage | Adapter Power |
| 12V | 8W | 100V-240V ac | 12V/1A |
LED Chip Parameters:
| LED Power | LED Color | Color Temperature | Colour Temperature Options | Luminous Flux | Life Span |
| 5W | White | 6000K | 3000K/4000K | 500lm @ 6000K | 50000h |
Control Methods:
| 1 | DIP Switches |
| 2 | Remote Control (optional) |
| 3 | Master-slave |
| 4 | DMX Control |
Standard Parts in the Package:
| No. | Item | Quantity |
| 1 | 6-color Wheel (built-in) | 1 |
| 2 | 14mm Port Connector | 1 |
| 3 | AC-DC Adapter | 1 |
| 4 | DMX512 Signal Cable | 1 |
Optional Parts:
| No. | Item |
| 1 | 12-Key RF Remote Control |
| 2 | Fast-Effect Twinkle Wheel |
| 3 | Slow-Effect Twinkle Wheel |
| 4 | Colorful Fast-Effect Twinkle Wheel |
| 5 | Colorful Slow-Effect Twinkle Wheel |
| 6 | 18mm Port Connector |

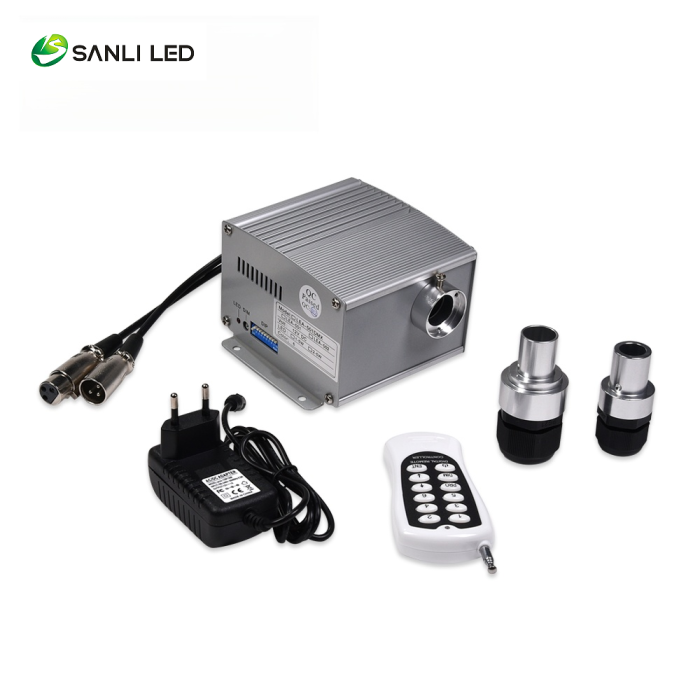

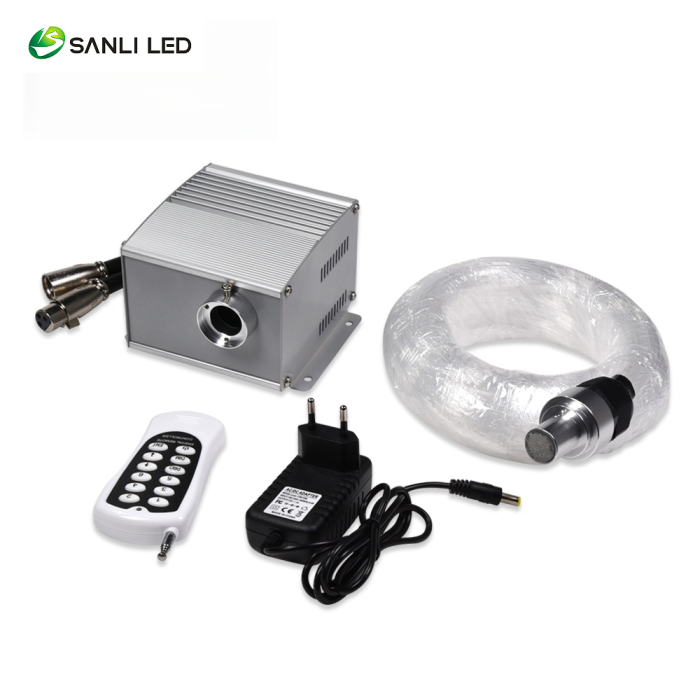

1 x 5W DMX LED fiber optic light source
1 x 12-Key RF remote control (optional)
1 x 14mm port connector
1 x 18mm port connector (optional)
1 x AC-DC adapter
1 x DMX512 Signal Cable, 5m length
1 x User manual
1 x Fuse
