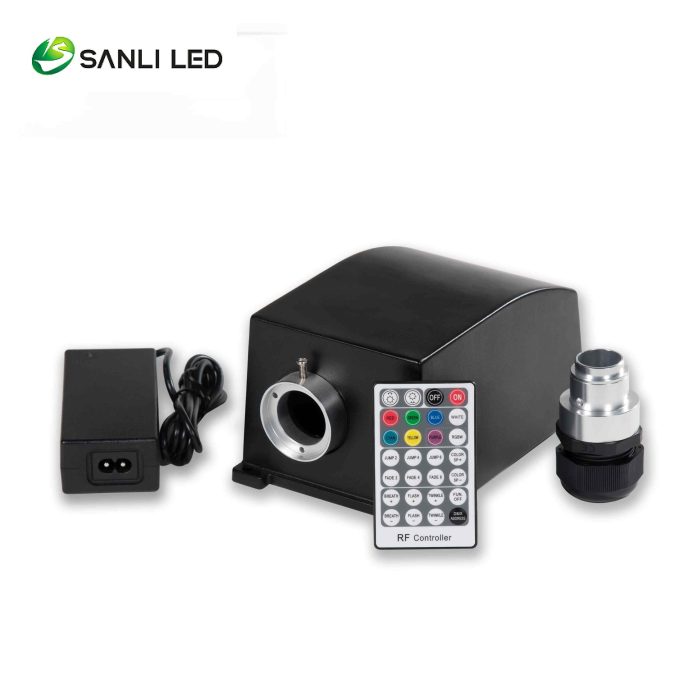

20W White LED DMX Fiber Optic Light Source | LET-2001DMX
The LET-2001DMX is a kind of high power White LED DMX fiber Optic light source which have the both DMX512 and Remote control function.
1. Model: LET-2001DMX
2. Input Voltage: DC 12V
3. Light Source: White LED
4. LED Type: 15W, 3000K/6000K
5. Wheel/Disc: 6-color wheel/Twinkle wheel/Colorful twinkle wheel
6. Control: DMX512/Remote control/DIP switches
7. Light Emitting: Static color/Cycling colors
8. Adjustable wheel spin speed
9. Dimmable
10. No fans, noise-free
11. DMX512 protocol: DMX512 console or master-slave control
12. Warranty: 2 Years
- Description
- Technical Parameter
- Package Including
- Reviews (0)
Description

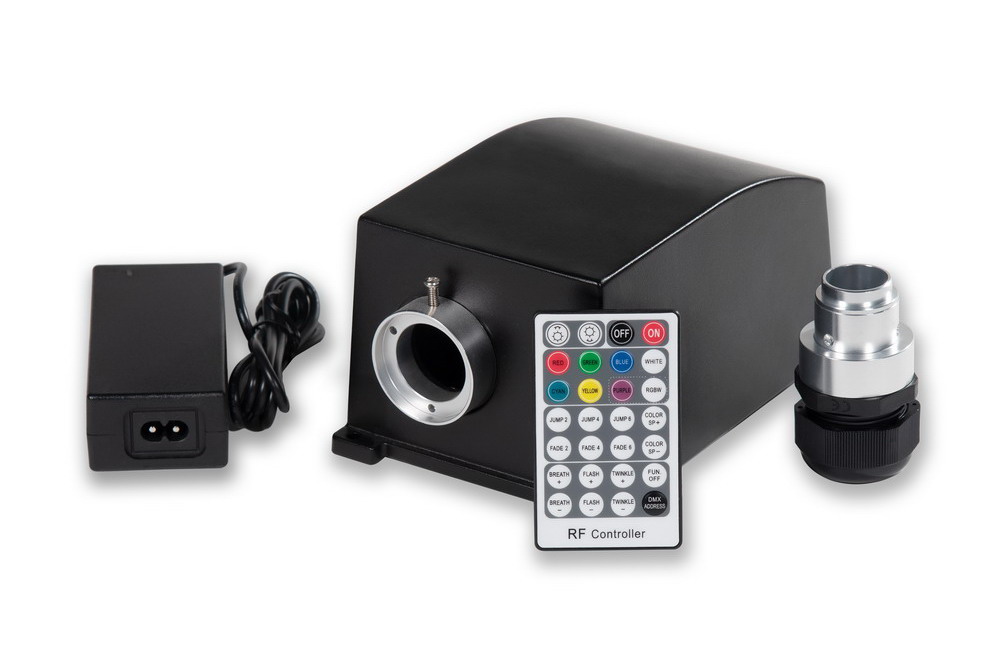

Newest Version DMX Light Source
The LET series of fiber optic light source (LET-2001DMX) is newly developed in 2024 to replace the previous LEK-2001/DMX and LEK-351/DMX. Compact in size, but it is more powerful than LEK type. New 28-key remote control is applied to have the visual control of the light source performance.
DMX Channels:
CH1: Colors
CH2: Color Wheel/Motor
CH3: N/A
CH4: Dimming + Strobe

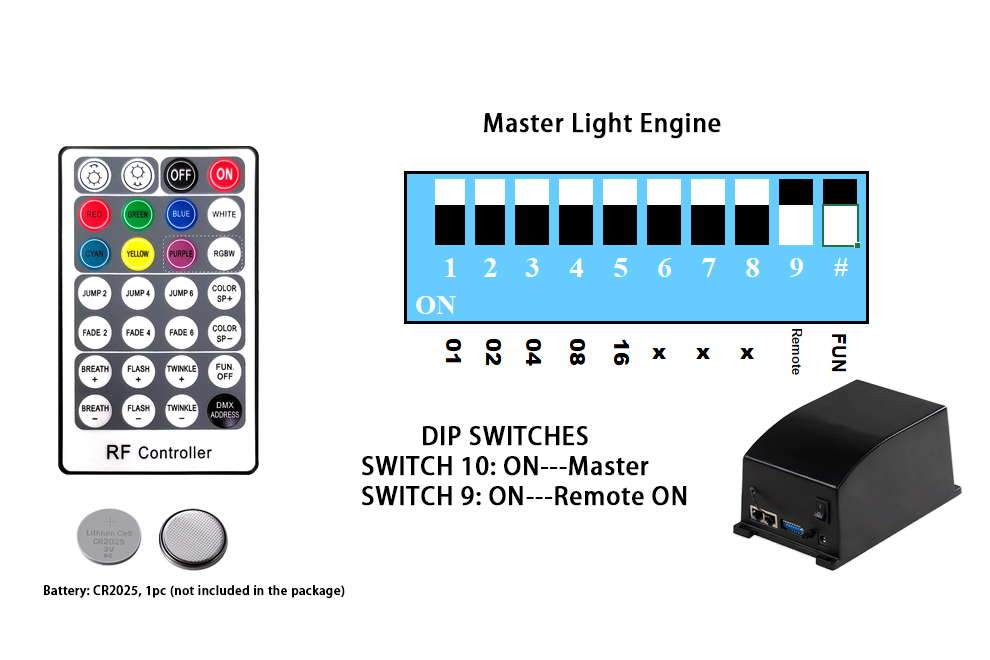

Built-in Program & 28-Key RF Remote Control
There are total 21 built-in programs for LET-2001DMX fiber optic light source, which could be selected by the DIP switches only.
The 28-key remote control has an effective control distance of around 15 meters in an open area and can be used with fiber optic light engines to have a one-to-one, one-to-multi, multi-to-one or multi-to-multi control.
DIP Switch 10 and Switch 9 need to be ON to turn on the remote control function.
Battery: CR2025, 1pc (not included in the package).

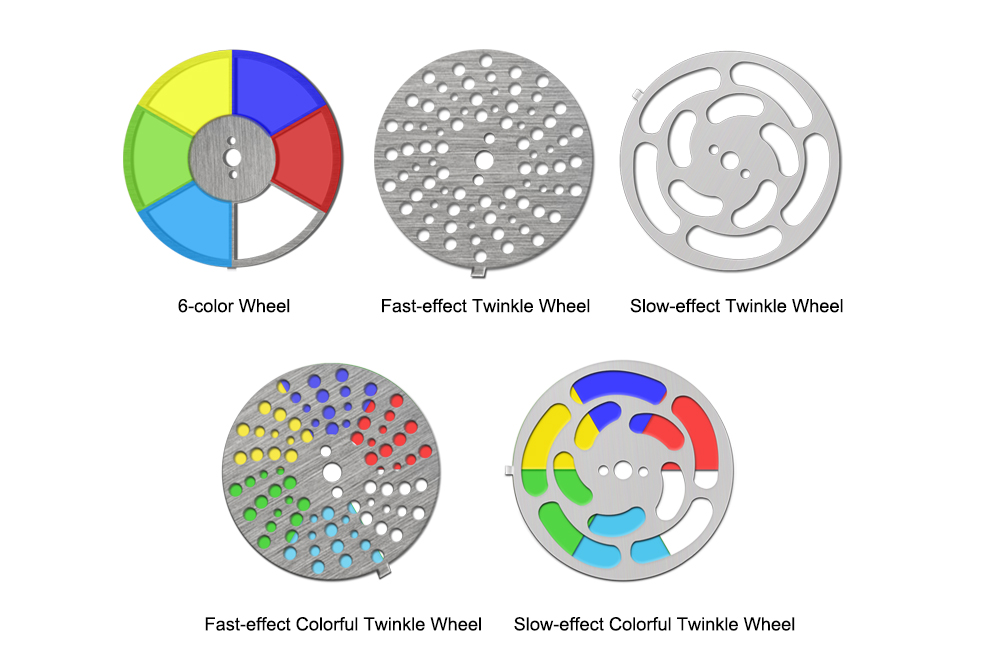

Color Wheel and Twinkle Wheel
The wheels/discs that could be equipped into LET-2001DMX fiber optic light source, from left to right and top to bottom:
1. The 6-color wheel
2. The fast-effect twinkle wheel
3. The slow-effect twinkle wheel
4. The colorful fast-effect twinkle wheel
5. The colorful slow-effect twinkle wheel
The default wheel is the 6-color wheel. Other wheels/discs are available at request, and the customized requirement is also welcome.

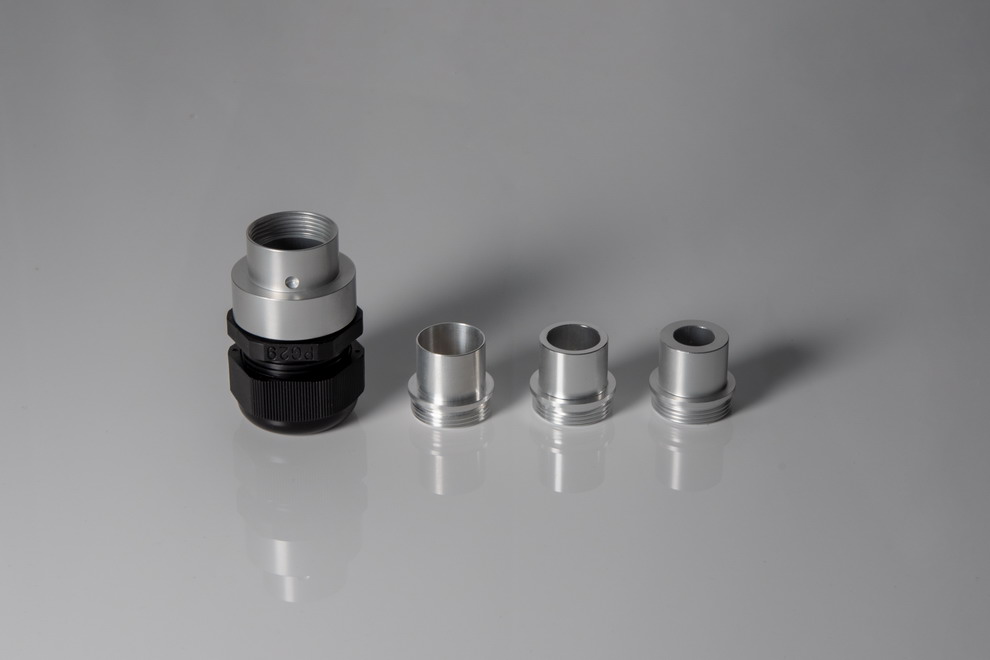

3-in-1 Fiber Optic Illuminator Port Connector
By default Sanli LED provides one unit of 14mm/18mm/22mm 3-in-1 combined fiber optic port connector for the LET-2001DMX light source. These apertures are capable of 250pcs, 450pcs, and 650pcs of 0.75mm fiber tails respectively.
Customized apertures are also welcome!
Specification:
| Item Number | Standard Aperture | Optional Aperture | Maximum Fiber Capacity (0.75mm fiber tails) | Housing Material | Housing Color | Dimensions (mm) | Optional Remote Control |
| LET-2001DMX | 14mm/18mm/22mm | N/A | 650pcs | Aluminum | Black | L182XW115XH90 | RC-28 |
Electrical Parameters:
| Working Voltage | Power Consumption | Input Voltage | Adapter Power |
| 12V | 20W | 100V-240V ac | 12V/4A |
LED Chip Parameters:
| LED Power | LED Color | Color Temperature | Colour Temperature Options | Luminous Flux | Life Span |
| 15W | White | 6000K | 3000K | 1500lm @ 6000K | 50000h |
Control Methods:
| 1 | DIP Switches |
| 2 | Remote Control (optional) |
| 3 | Master-Slave |
| 4 | DMX Control |
Standard Parts in the Package:
| No. | Item | Quantity |
| 1 | 6-color Wheel (built-in) | 1 |
| 2 | 14/18/22mm 3-in-1 Port Connector | 1 |
| 3 | AC-DC Adapter | 1 |
| 4 | DMX512 Signal Cable | 1 |
Optional Parts:
| No. | Item |
| 1 | 28-Key Remote Control |
| 2 | Fast-Effect Twinkle Wheel |
| 3 | Slow-Effect Twinkle Wheel |
| 4 | Colorful Fast-Effect Twinkle Wheel |
| 5 | Colorful Slow-Effect Twinkle Wheel |

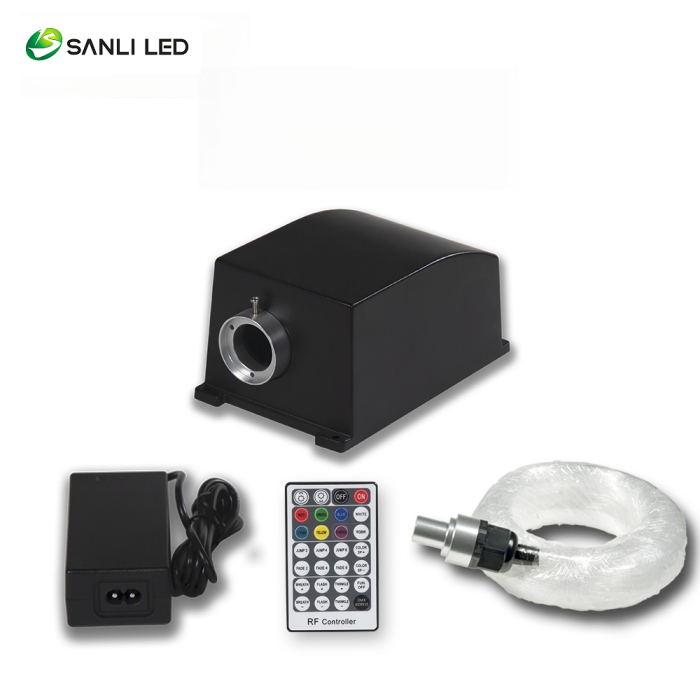

1 x 20W DMX fiber optic light source
1 x 28-Key RF remote control (optional)
1 x 14/18/22mm 3-in-1 port connector
1 x AC-DC adapter
1 x DMX512 Signal Cable
1 x User manual
1 x Fuse
