Sanli LED, as the more than 20 years of top experience for the fiber optic lighting manufacturer and supplier in Guangzhou, China. Very pleasured to sharing the professional knowledge of optic fibre lighting ceiling kit for on this article.

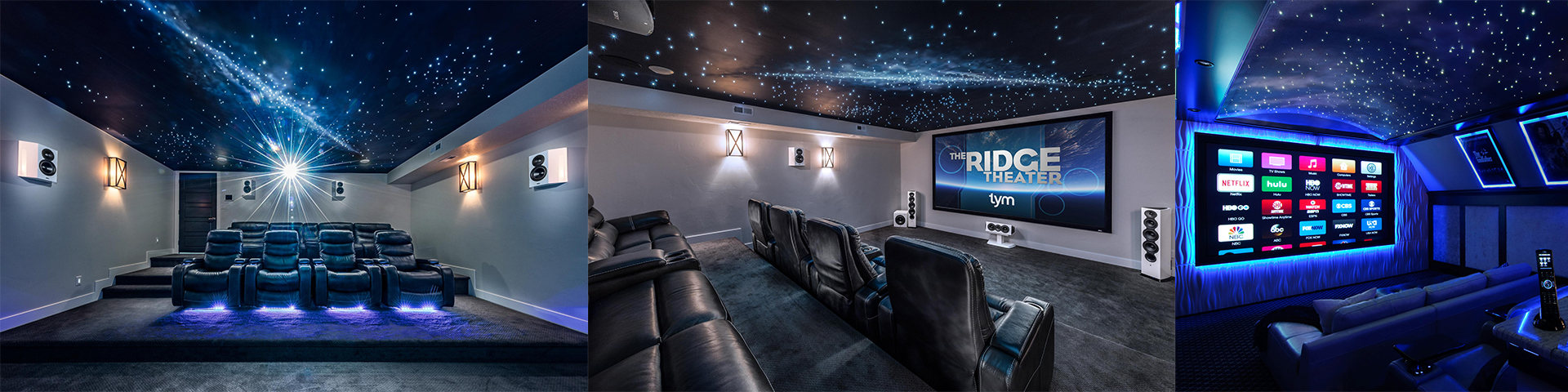

The optic fibre lighting ceiling kit is a kind of fiber optic star ceiling fixture for home theaters. And it is composed by the LED fiber optic illuminator, optical fibre cables and the star ceiling fixtures.
Will share the professional suggestions that how to choice the best optic fibre lighting ceiling kit for your starry ceiling lighting projects on the following.
1. Optic Fibre Lighting Ceiling Kit 1st Part – LED Light Source
Sanli LED offers a variety of LED light sources for optic fibre lighting ceiling kits. Usually, for standard fiber optic starry, we recommend 12V LED light source to cover a ceiling with an area of up to 30 square meters.
Most of the LED light engines recommended have an aperture of 14mm by default, or 18mm by request. For 14mm, the LED light source is capable of 250pcs of 0.75mm fiber optic tails, while 18mm is capable of 450pcs.
2. Fiber Optic Ceilng Lights 2nd Part – Fiber Optic Bundles
The fiber optic bundles consist of PMMA light fiber cables. It could be a mix of fiber strands of different diameters, lengths, and numbers.
The fiber ends were collected into a cluster and cut to be even with the port connector. The fiber optic bundles are ready for installation after being unpacked.
3. Optic Fiber Lighting Ceiling Kit 3rd Part – Star Ceilinig Fittings
The star ceiling fittings are not a MUST in the fiber optic star ceiling kit. Usually, a small portion of the fiber optic strands applies end fittings to have diffused light beam. Sanli LED also provides OEM/ODM service to end fixtrues.
Fiber Optic Illuminator Port Connector
By default, Sanli LED will supply the fiber bundle with a port connector, which is also named the common end. If the fiber optic bundles are ordered without the LED light engine, please advise the sales of the right light engine model number so that the fiber bundle will have the right port connector.
The port connectors are not universal. Each series of the LED illuminator may have different port connectors.
Installation Accessories
The install accessories are the glue, knife, drills, etc.
Some clients prefer to buy the complete rolls of fiber optics and do the cutting on-site. As such the hot knife is also needed to cut the fiber ends even to the port connector.
The glue in the photo is for reference only. The glue is not allowed for either air or sea shipment.
ALL Fiber Optic Starlights Pack for Reference
Standard Pack:
A. LED Light Source:
The full range of our low-voltage light sources
| Single-Port | White LED | RGB LED | RGBW LED | |||
LLE-001 LLE-007 |
| LLE-002 LLE-004 LLE-006 |
| LLE-004RGBW LEB-431 LEB-431DMX |
| |
White LED + Wheel (6-color/Twinkle) | RGB + Twinkle Wheel | RGBW + Twinkle Wheel | ||||
LLE-003 LEA-501 LEA-501DMX LEE-1001 LEE-1001DMX LEG-501DMX* LEG-1001DMX* LET-2001DMX |
| LLE-005 |
| LLE-005RGBW LET-4061DMX |
| |
| Dual-Port | White LED + Wheel (6-color/Twinkle) | RGBW LED | RGBW + Twinkle Wheel | |||
LEA-502 LEF-502DMX LEP-1002 LEP-1002DMX |  | LEB-432 LEB-432DMX |  | LEF-432DMX |  | |
*: Both LEG-501DMX and LEG-100DMX have dual wheels: a 6-color wheel and a twinkle wheel.
B. Fiber Optic Bundles:
  | |||||
| Item No. | POF points | Ceiling Area | Fiber Strands Mix | Light Engines | Remarks |
FB900-01 | 25-30 | 25M²-30M² | 540pcs*5m/pc*0.75mm + 130pcs*5m/pc*1.0mm | LEA-502 LEB-432 LEF-432DMX LEF-502DMX | a. 2 fiber bundles with the same fiber strands mix for each item. engines are recommended. |
FB900-02 | 25-30 | 25M²-30M² | 650pcs*5m/pc*0.75mm + 60pcs*5m/pc*1.5mm + 30pcs of crystal end pieces | ||
FB720-01 | 25-30 | 20M²-25M² | 440pcs*4.5m/pc*0.75mm + 100pcs*4.5m/pc*1.0mm + 25pcs*4.5m/pc*1.5mm + 25pcs of crystal end pieces | ||
FB720-02 | 25-30 | 20M²-25M² | 520pcs*4.5m/pc*0.75mm + 50pcs*4.5m/pc*1.5mm + 25pcs of crystal end pieces | ||
FB600-01 | 25-30 | 15M²-20M² | 360pcs*4m/pc*0.75mm + 88pcs*4m/pc*1.0 mm+ 20pcs*4m/pc*1.5mm + 20pcs of crystal end pieces | ||
FB600-02 | 25-30 | 15M²-20M² | 440pcs*4m/pc*0.75mm + 40pcs*4m/pc*1.5mm + 20pcs of crystal end pieces | ||
| FB400-01 | 25-40 | 10M²-15M² | 400pcs*3m/pc*0.75mm | LLE-001 LLE-002 LLE-004(RGBW) LLE-005(RGBW) LEA-501(/DMX) LEB-431(/DMX) LEE-1001(/DMX) LEE-431DMX LEG-501DMX | Single-port light engines are |
| FB400-02 | 25-40 | 10M²-15M² | 328pcs*3m/pc*0.75mm + 18pcs*3m/pc*1.5mm | ||
| FB250-01 | 25-40 | 6M²-10M² | 250pcs*2.5m/pc*0.75mm | ||
| FB250-02 | 25-40 | 6M²-10M² | 210pcs*2.5m/pc*0.75mm + 10pcs*2.5m/pc*1.5mm | ||
| FB200-01 | 30-40 | 5M²-7M² | 200pcs*2m/pc*0.75mm | ||
| FB200-02 | 30-40 | 5M²-7M² | 164pcs*2m/pc*0.75mm + 9pcs*2m/pc*1.5mm | ||
| FB150-01 | 30-50 | 3M²-5M² | 150pcs*2m/pc*0.75mm | ||
| FB150-02 | 30-50 | 3M²-5M² | 126pcs*2m/pc*0.75mm + 6pcs*2m*1.5mm | ||
C. End Fittings:
1. Optional.
2. Our crystal star fittings and plastic star fittings are recommended.
Customized Pack Kit:
A. High Power Light Source:
1. High Voltage Models:
| Regular Type: White LED + 6-color Disc | DMX512: White LED + 6-color Disc | Twinkle Effect: RGBW LED + Twinkle Disc | |||
| LEI-4001 |  | LEI-4001DMX |  | LEI-4121DMX |
|
| LEI-8001 | LEI-8001DMX | LEI-4241DMX | |||
| LEI-15001 | LEI-15001DMX | LEI-4361DMX | |||
2. Other Models
| LET Series | LER Series ( no built-in wheels) | ||||
| LET-2001DMX | White LED 6-Color Disc Φ22 |  | LER-3001DMX | White LED Φ30 |  |
| LET-4061DMX | RGBW LED Twinkle Disc Φ22 | LER-4121DMX | RGBW LED Φ30 | ||
B. Fiber Bundle: Fiber strands mix of different diameters, lengths, and numbers as per request or the ceiling size.
C. End Fittings: Optional. Customized design is also welcome.
