Sanli LED, as the more than 20 years of manufacturer, factory, supplier of top quality fiber optic lighting in Guangzhou, China. Very pleasured to share the professional Knowledge of fiber lights ceiling kits for home theater rooms on the article now.

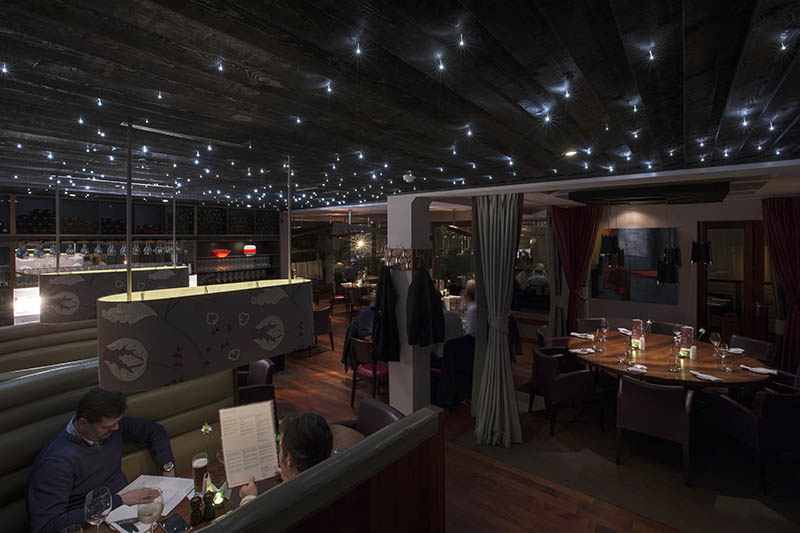

The fiber lights ceiling kit is a kind of fiber optic star ceiling lights for the room ceiings of home theater and offices. And it is composed by the LED fiber optic light source, fiber optic light cables and the optional star ceiling fittings.
Will share the professional suggestions that how to choice the fiber lights ceiling kit for your star ceiling lighting projects on the following.
1. Fiber Lights Ceiling Kit 1st Part – LED Light Source
Sanli LED offers a variety of LED fiber optic illuminators for fiber optic starfield ceiling kits. Usually, for standard starry ceiling decoration, we recommend 12V LED light source to cover a ceiling with an area of up to 30 square meters.
Most of the LED light generators recommended have an aperture of 14mm by default, or 18mm by request. For 14mm, the LED light source is capable of 250pcs of 0.75mm fiber optic tails, while 18mm is capable of 450pcs.
2. Fiber Starlight Kits 2nd Part – Fiber Optic Harness
The fiber optic bundles consist of PMMA light fiber cables. It could be a mix of fiber strands of different diameters, lengths, and numbers.
The fiber ends were collected into a cluster and cut to be even with the port connector. The fiber optic bundles are ready for installation after being unpacked.
3. Fiber Optic Ceiling Kit 3rd Part – End Fittings
The star ceiling fittings are not a MUST in the fiber optic star ceiling kit. Usually, a small portion of the fiber optic strands applies end fittings to have diffused light beam. Sanli LED also provides OEM/ODM service to end fixtrues.
Fiber Optic Port Connector
By default, Sanli LED will supply the fiber bundle with a port connector, which is also named the common end. If the fiber optic bundles are ordered without the LED light engine, please advise the sales of the right light engine model number so that the fiber bundle will have the right port connector.
The port connectors are not universal. Each series of the LED illuminator may have different port connectors.
Installation Accessories
The install accessories are the glue, knife, drills, etc.
Some clients prefer to buy the complete rolls of fiber optics and do the cutting on-site. As such the hot knife is also needed to cut the fiber ends even to the port connector.
The glue in the photo is for reference only. The glue is not allowed for either air or sea shipment.
ALL Starlight Ceiling Lights Pack for Reference
Standard Pack:
A. LED Fiber Optic Illuminator:
The full range of our low-voltage light sources
| Single-Port | White LED | RGB LED | RGBW LED | |||
LLE-001 LLE-007 |
| LLE-002 LLE-004 LLE-006 |
| LLE-004RGBW LEB-431 LEB-431DMX |
| |
White LED + Wheel (6-color/Twinkle) | RGB + Twinkle Wheel | RGBW + Twinkle Wheel | ||||
LLE-003 LEA-501 LEA-501DMX LEE-1001 LEE-1001DMX LEG-501DMX* LEG-1001DMX* LET-2001DMX |
| LLE-005 |
| LLE-005RGBW LET-4061DMX |
| |
| Dual-Port | White LED + Wheel (6-color/Twinkle) | RGBW LED | RGBW + Twinkle Wheel | |||
LEA-502 LEF-502DMX LEP-1002 LEP-1002DMX |  | LEB-432 LEB-432DMX |  | LEF-432DMX |  | |
*: Both LEG-501DMX and LEG-100DMX have dual wheels: a 6-color wheel and a twinkle wheel.
B. Fiber Optic Harness:
  | |||||
| Item No. | POF points | Ceiling Area | Fiber Strands Mix | Light Engines | Remarks |
FB900-01 | 25-30 | 25M²-30M² | 540pcs*5m/pc*0.75mm + 130pcs*5m/pc*1.0mm | LEA-502 LEB-432 LEF-432DMX LEF-502DMX | a. 2 fiber bundles with the same fiber strands mix for each item. engines are recommended. |
FB900-02 | 25-30 | 25M²-30M² | 650pcs*5m/pc*0.75mm + 60pcs*5m/pc*1.5mm + 30pcs of crystal end pieces | ||
FB720-01 | 25-30 | 20M²-25M² | 440pcs*4.5m/pc*0.75mm + 100pcs*4.5m/pc*1.0mm + 25pcs*4.5m/pc*1.5mm + 25pcs of crystal end pieces | ||
FB720-02 | 25-30 | 20M²-25M² | 520pcs*4.5m/pc*0.75mm + 50pcs*4.5m/pc*1.5mm + 25pcs of crystal end pieces | ||
FB600-01 | 25-30 | 15M²-20M² | 360pcs*4m/pc*0.75mm + 88pcs*4m/pc*1.0 mm+ 20pcs*4m/pc*1.5mm + 20pcs of crystal end pieces | ||
FB600-02 | 25-30 | 15M²-20M² | 440pcs*4m/pc*0.75mm + 40pcs*4m/pc*1.5mm + 20pcs of crystal end pieces | ||
| FB400-01 | 25-40 | 10M²-15M² | 400pcs*3m/pc*0.75mm | LLE-001 LLE-002 LLE-004(RGBW) LLE-005(RGBW) LEA-501(/DMX) LEB-431(/DMX) LEE-1001(/DMX) LEE-431DMX LEG-501DMX | Single-port light engines are |
| FB400-02 | 25-40 | 10M²-15M² | 328pcs*3m/pc*0.75mm + 18pcs*3m/pc*1.5mm | ||
| FB250-01 | 25-40 | 6M²-10M² | 250pcs*2.5m/pc*0.75mm | ||
| FB250-02 | 25-40 | 6M²-10M² | 210pcs*2.5m/pc*0.75mm + 10pcs*2.5m/pc*1.5mm | ||
| FB200-01 | 30-40 | 5M²-7M² | 200pcs*2m/pc*0.75mm | ||
| FB200-02 | 30-40 | 5M²-7M² | 164pcs*2m/pc*0.75mm + 9pcs*2m/pc*1.5mm | ||
| FB150-01 | 30-50 | 3M²-5M² | 150pcs*2m/pc*0.75mm | ||
| FB150-02 | 30-50 | 3M²-5M² | 126pcs*2m/pc*0.75mm + 6pcs*2m*1.5mm | ||
C. End Fittings:
1. Optional.
2. Our crystal star fittings and plastic star fittings are recommended.
Customized Pack Kit:
A. High Power Light Source:
1. High Voltage Models:
| Regular Type: White LED + 6-color Disc | DMX512: White LED + 6-color Disc | Twinkle Effect: RGBW LED + Twinkle Disc | |||
| LEI-4001 |  | LEI-4001DMX |  | LEI-4121DMX |
|
| LEI-8001 | LEI-8001DMX | LEI-4241DMX | |||
| LEI-15001 | LEI-15001DMX | LEI-4361DMX | |||
2. Other Models
| LET Series | LER Series ( no built-in wheels) | ||||
| LET-2001DMX | White LED 6-Color Disc Φ22 |  | LER-3001DMX | White LED Φ30 |  |
| LET-4061DMX | RGBW LED Twinkle Disc Φ22 | LER-4121DMX | RGBW LED Φ30 | ||
B. Fiber Optic Harness: Fiber strands mix of different diameters, lengths, and numbers as per request or the ceiling size.
C. End Fittings: Optional. Customized design is also welcome.
